Using Aoa Diagram the Network Described Below

How long is the minimum duration of this network. Develop an activities boundary timetable define the critical path and determine the normal total.

Aoa And Aon Networks

Activity Nodes Time weeks.

. Draw an AOA network diagram representing the project. This is what we have discussed in this video. J-L-O time duration 10 6 7 23.

How long is the minimum duration of this network. Calculate its critical path. Calculate its critical path.

Second approach You calculate the network diagram starting on day 1. AOA Network Diagram PERT Chart Use Createlys easy online diagram editor to edit this diagram collaborate with others and export results to multiple image formats. Using AOA diagram the network described below.

The activity J starts at event 1 and ends at event 2. How long is the minimum duration of this network. The formulas used are below Early Start EF of predecessor activity 1.

Textbook Solutions Expert Tutors Earn. 37 TIME TIME WEEKS WEEKS ACTIVITY NODES NODES ACTIVITY 3-4 10 1-2 4-5 1-3 3-5 P 2 4 M 2-3. Calculate its critical path.

Similarly activity K starts at event 1 and ends at event 3. The activities are written on arrows and shown according to predecessors and successor. You can edit this template on Createlys Visual Workspace to get started quickly.

Adapt it to suit your needs by changing text and adding. Using AOA diagram the network described below for Lillian Foks construction project. There are 5 paths in this network.

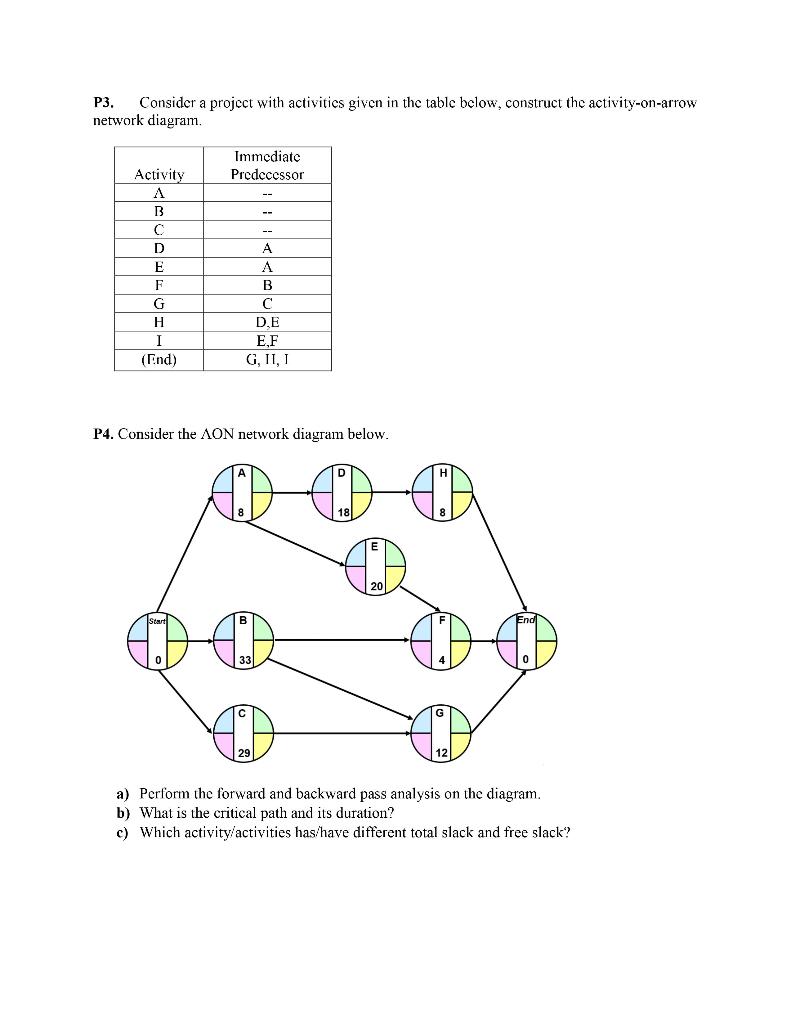

Mahmoud Abbas Mahmoud 4. Drawing the Project Network AOA Activity on Arrow. Consider the table below Network Diagram Data for a Small Project.

Calculate its critical path. Using AOA diagram the network described below for Lillian Foks construction project. Calculate its critical path.

Construct an AON network for these activities. Course Title BUSI 514. Put the node numbers in circles and draw arrows from node to node labeling each arrow with the activity letter.

How long is the minimum duration of. IMMEDIATE IMMEDIATE ACTIVITY PREDECESSORS ACTIVITY PREDECESSORS A E B F B A G C E D A D F B. A Calculate its critical path.

Networks show each activity as an arrow and the nodes represent the starting and ending points AON Activity on Node. Using AOA diagram the network described below for Roni Zuckermans construction project. Calculate its critical path.

Calculate its critical path. Using AOA diagram the network described below for a construction project. Calculate its critical path.

And the network proceeds from Node 1 to Node 9. Given the project information in the table below draw a fully analyzed AOA network diagram for the project showing all ET and LT values at each node. Using AOA diagram the network described below for Lillian Foks construction.

How long is the minimum duration of this network. Using AOA diagram the network described below for Lillian Foks construction project. Earn Free Access.

Activity on ArrowAOA is technique used for scheduling the project using diagram. Using AOA diagram the network described below for Roni Zuckermans construction project. Using AOA diagram the network described below for Sarah McCombs construction project.

J-M-N-O time duration 10 3 2 7 22. B How long is the minimum duration of this network. A Calculate its critical path.

Answer to Problem 5. When it comes to AoA diagrams showing the finish-to-start relationships is a limited affair. We were unable to load the diagram.

All duration estimates or estimated times are in days. ACTIVITY NODES TIME ACTIVITY NODES TIMES. This is what we have discussed previously.

See full answer below. Networks show each activity as a node and arrows show the immediate predecessor activities Dr. A project network usually shows the association that is present between tasks within a project.

Using AOA diagram the network described below for Sarah McCombs construction project. Add To cart Related Questions. School Azusa Pacific University.

Using AOA diagram the network described below for Lillian Foks construction project. Using AOA diagram the network described below for Roni Zuckermans construction project. Determine g m for a MOSFET if V GSTh 3 V.

Calculate the critical path. B Critical Path ABEH 3 4 4 8 19 35 Using AOA diagram the network described below for Lillian Foks construction project. 37 using aoa diagram the network described below for.

35 Using AOA diagram the network described below for Lillian Foks construction project. 37 Using AOA diagram the network described below for Lillian Foks construction. F Chapter3 94 Level Level ID I t0 2 ll Proiect Management 35 Using AOA diagram the network described below for Sarah McCombs.

Using AOAdiagram the network described below for Lillian Foks construction project. Calculate its critical path. Calculate its critical path.

The activities are written on arrows and shown consistent with predecessors and successor. Answer of Using AOA diagram the network described below for Lillian Foks construction project. Using AOA diagram the network described below for Roni Zuckermans construction project.

The activities are written on arrows and shown according to predecessors and successor. How long is the minimum duration. Early Finish ES activity duration.

Pages 8 Ratings 91 218 199 out of 218 people found this document helpful. Using AOAdiagram the network described below for Lillian Foks construction project. Illustrating these activities by using nodes or even using arrows between the event nodes are the main ways you can draw those relationships.

How long is the minimum duration of this network. Carbondale Casting produces cast bronze valves on a 10. B How long is the minimum duration of this network.

What this means is that. How long is the minimum Download in DOC. Activity on ArrowAOA is technique used for scheduling the project using diagram.

35 Using AOA diagram the network described. First approach You calculate the network diagram starting on day 0. How long is the minimum duration of this network.

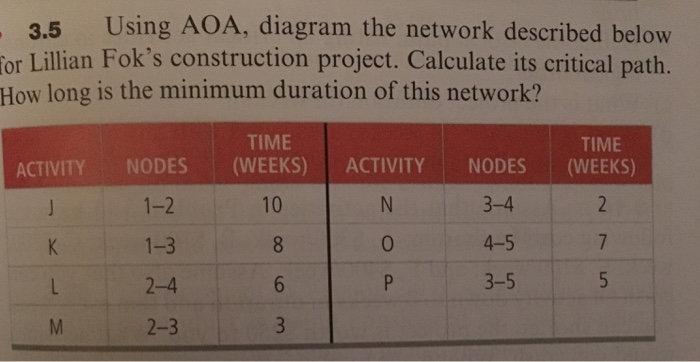

ACTIVITY NODES TIME WEEKS ACTIVITY NODES. Activity Nodes Time weeks J 1-2 10 K 1-3 8 L 2-4 6 M 2-3 3 N 3-4 2 O 4-5 7 P 3-5 5 a Critical Path J L O 10 6 7 23 Weeks b Minimum duration 41 weeks.
